Photoshop tutorial-30{ use of Gradient and Paint bucket tool on photoshop}
Photoshop tutorial-30{ use of Gradient and Paint bucket tool on photoshop} Summary:
This tutorial not only shows you the features
of the Paint Bucket tool within the Photoshop program, but it also
shows you how to use the Gradient tool. We will even show you how to
create custom Gradients! You may be thinking that you do not need to
know how to use these tools, but you will be using these tools once we
get into shadows. While proceeding through this extensive screenshot
tutorial, we will also give you tips and tricks.
Currently we are using Windows Vista Home Premium 64 Bit and the Photoshop CS4 Extended 64 Bit version.
Knowledge You Need to Know:
If
you are unfamiliar with certain areas that are not covered in this
tutorial, feel free check out other tutorials on our website. We have
many different types of tutorials that can be downloaded (Video, PDF) or
viewed online that will train you for free! Once you have the knowledge, feel free to come back and go through this tutorial again.
Preparing For This Tutorial:
You will be using the Sky image which we have used in past tutorials. If you do not have this image, please scroll down to the “Click Picture To Download Supporting Files” and download the image. Please open the image DSC03562 in the Photoshop Program.
Before
we begin, what we would like you to do is create a duplicate layer
(CTRL-“J”) and hide the background layer. Next use the Magic Wand (if
you are unfamiliar with this tool, please refer to the Magical Colors And Selections
tutorial) and use a tolerance of 30 and select the blue sky to the left
hand side. It should select most of the blue sky on the left side of
the image. While it is selected, do a CTRL-“J” to duplicate the selected
area. Hide Layer 1 and finally duplicate the Layer 2 one more time. To
keep things straight, rename the top layer to “Paint Bucket” and the
next layer to “Gradient”.
Your canvas should be similar to the image below.
You
layer palette should look like the image below. You might be wondering,
why did we have you do this? We had you do this for a few reasons: 1).
It gives you good practice with the Magic Wand tool and renaming Layers.
2). This will allow us to show you quickly the Paint Bucket and
Gradient Tool without doing additional steps.
Paint Bucket Tool:
The
Paint Bucket Tool allows you to fill in a whole image or a selected
area with a solid color. The options are very similar to the Magic Wand,
but if you forgot the options of the Magic Wand Tool, no problem
because we will go through everything again. On the top layer, use the
Magic Wand and select your blue area again.
Towards
the center of the toolbox and to the right of the Eraser tool on a 2
column toolbox, you will find the Gradient/Paint Bucket image. Right
click this image and Left click the “Paint Bucket Tool”.
The Paint Bucket Tool always uses your foreground color to make the fill. Back in the Colors And Painting Tools
tutorial we showed you that you can enter a numeric value in the color
picker, which will allow you to use a specific color. On this example,
change the foreground color to: 5f6efd.
In the Paint Bucket options bar you will notice a lot of, well options.
A).
If you Left click this drop down, you tell Photoshop that you do NOT
want to fill it with the foreground color, but to fill it with a
Pattern. We discussed Patterns in the Patterns tutorial. On this example, please leave this option set to “Foreground”.
B). If you did select the “Pattern” in option A). it will allow you to change the pattern in this box.
C).
We explained before that a “Mode” is a preprogrammed feature in
Photoshop and we will be discussing all modes in the future. For now
leave it as “Normal”.
D).
Opacity tells Photoshop if you want the layer below to bleed through or
not. Left click this percentage box or Left click the right arrow to
change the percentage. On this example, please leave it at 100%.
E).
Tolerance refers to how carefully the tool must match the color of an
area in order to identify which pixels to fill. Because you already made
the selection, you can crank this up to 50 or higher.
F). Anti-Alias allows it to smooth the edges. Leave this checked for this example.
G). Contiguous – If checked, this tells Photoshop to fill only contiguous pixels. Leave this checked for this example.
H). We do not want it to expand across all layers, so make sure the “All Layers” is turned off.
Now
comes the easy part. When you move your mouse over to the canvas, you
will notice the pointer changes to a Paint Bucket. Single Left click
inside the selection to change the color. You will find many needs for
the Paint Bucket, such as using it to mask a specific area (remember
layer masking, if not check out Masking And Transform Information or More Masks Please tutorial). The image below is our end result.
Gradient Tool:
**Hide
the Paint Bucket Layer (top layer) and unhide the Gradient (below top
layer). Now make sure the Gradient layer is selected and use the Magic
Wand to select the blue area. If you do not make a selection, the
Gradient will span across the whole canvas!
So what is a Gradient? It is a gradual transition between one or more colors.
The
Gradient Tool is very easy to use, but creating custom gradients can be
confusing. That is why we went the extra step and made sure there are a
lot of screenshots in this section of the tutorial.
Right click the same icon on the toolbox and Left click the “Gradient Tool” option. Photoshop Tip – The keyboard shortcut is “G”.
There are a lot of options for the Gradients. Let’s go through them.
A).
The Gradient picker shows you what the gradient will look like (left
side is the first color and the right side is the last color). In a
section below, we will show you if you Left click inside this box, it
will allow you to change the gradient. For now leave it as the
foreground/background color.
B). In the next section below we will go over the predefined styles.
C).
The mode as we explained in previous tutorials are pre-programmed
features. We will be explaining all the modes in a future tutorial. For
now, please leave the mode as “Normal”.
D).
Opacity defines how see through the gradient is. 100% is not at all and
0% will mean you can’t even see the gradient. For this tutorial, leave
the opacity set to 100%.
E). Reverse allows you to flip the starting and ending colors.
F).
Dither makes the gradient effect smoother. To add some technical speak,
it tries to reduce the color banding. For this tutorial, leave the
Dither checked.
G).
The Transparent option turns transparency on so if you want parts of
your gradient to be transparent, you will need this option on.
Even though the actual images in the options bar show you the effect, we wanted to go over the detail from option B) from above.
A). Linear gradient – The gradient follows a line.
B). Radial gradient – The gradient radiates from a defined point.
C). Angle gradient – The gradient is based on a defined angle.
D). Reflected gradient – The gradient is reflected based on your stroke.
E). Diamond gradient – The gradient is a diamond effect.
Make
sure the Gradient layer is selected and you have the blue area selected
by using the Magic Wand. Remember if you do not make a selection, the
Gradient will span across the whole canvas (not just the selected area).
So
how do you use the gradient tool? First, select which gradient type you
want to use (diamond, angle, linear, etc.). Now move your mouse were
you want to start the gradient (this will be the color that is on the
left hand side in the gradient options bar). Now hold down your Left
mouse button and drag it in a direction. Release the Left mouse button
when you are happy with the length and direction of the gradient. Based
on the length and the direction, it will create your gradient
differently. If you want to experiment, use the CTRL-“Z” to undo. Photoshop Tip – To draw a straight line; hold down the “Shift” key when holding down the Left mouse button.
Here
is our test gradient that we used. As you can see we used the linear
gradient style. Our foreground color was the blue we used in the
previous section of the tutorial and our background color was black. As
we stated the foreground color is first and the background color is
second (we did NOT use the reverse option) and that is why it is light
blue on the left hand side and black on the right hand side. Photoshop Tip – Use another gradient or a different style on top of the current gradient and it will dramatically change the colors.
Custom Gradients:
If
you want to create your own Gradient or use a preset gradient, Left
click on the Gradient picker box. Once you click on the Gradient picker
box, you will see a new dialog box will be displayed. Let’s make sure we
are looking at the presets the same way. A). Left click this right
arrow and B). Left click “Small Thumbnail”.
Because there is a lot to go over, we will be breaking this dialog box up into sections. Let’s first explain the top section.
A), To use the preset, Left click the preset.
B). If you want use the Gradient, Left click the “OK” button and if you want to make changes, Left click the “Cancel” button.
C). If you are creating a new Gradient, Left click this text box and change the name.
D). You can create a Gradient with “Noise”, by Left clicking the down arrow. For now, leave it as “Solid”.
E). Without “Smoothness:”, the Gradient looks bad. Leave this at 100%.
Now let’s change the gradient.
A).
The black pointers are called “Opacity Stoppers”, because it allows you
to change the opacity of the color. Remember your foreground color is
on the left hand side and the background color is on the right hand
side. Left click the Left hand opacity stopper.
B).
Once you Left click one of the Opacity Stoppers, it tells Photoshop
that you want to change that specific stopper opacity. On this example:
change the opacity to 50%.
C).
You either can move the mouse to the stopper and hold down the Left
mouse button and drag it to the right or you can enter a percentage
number in the “Location:” field.
You
can add your own opacity stoppers by Left clicking above the location.
It will create a new opacity stopper. On this example, create a new
Opacity stopper in the middle (Left click in the middle of the bar and
above the bar). Change the opacity to 30%. See how it starts off at 50%
and then goes to 30% in the middle and then ends very dark at 100%? Photoshop Tip –
To Delete an added stopper, Left click the stopper and then Left click
the “Delete” button located in the bottom section of the dialog box.

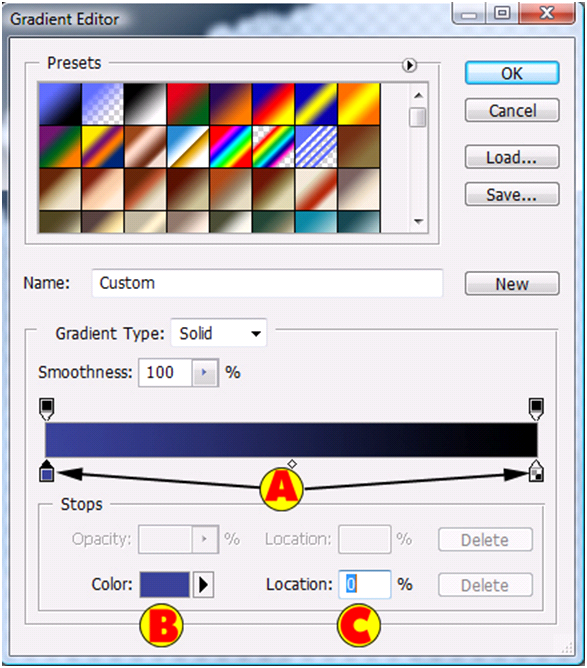

The bottom arrows are called “Color Stoppers”, because they allow you to change the color.
A). These are the “Color Stoppers”. On this example, single Left click the left stopper.
B).
The color allows you to change the color. Left click this box and Left
click “Use Color”. Now move your mouse over to a darker blue in the
image. The pointer will change to the Eyedropper (Colors And Painting Tools tutorial). Left click the color in the image.
C). Once again you can change the location (see above for more details).
Just
like the “Opacity Stoppers” you can add a “Color Stopper” by Left
clicking below the color bar. Now you might be wondering what are the
little diamonds in between the stoppers? If you Left click either an
opacity/color stopper, you will notice at least one diamond. If you move
your mouse over to these and hold down the Left mouse button and drag
it left or right, it allows you to alter the gradient slightly. Release
the Left mouse button when you are satisfied with the adjustment.
Conclusion:
You
may notice that we did not show you how to load or save a gradient.
That will fall under an up and coming tutorial (more than likely the
next tutorial). We felt that we have thrown a lot of information at you
at once and we wanted to give you some time to absorb this knowledge.
By
completing this tutorial, you should have gotten a refresher course on
the Magic Wand and you now know how to use/create custom gradients. We
also showed you the use of the Paint Bucket Tool. You may be thinking
that you will never use the gradient/paint bucket tool, but when we get
into creating shadows and other areas, you will need to know these
tools.
Please take a few minutes and answer the 10 question quiz below.
1). Within the custom Gradient dialog box, what is the top stoppers called?
A). Opacity Stoppers.
B). Color Stoppers.
C). Pointed Stoppers.
D). Positional Stoppers.
2). What is the keyboard shortcut to the Gradient/Paint Bucket Tools?
A). “P”.
B). “B”.
C). “G”.
D). “T”.
3). How do you use the Paint Bucket to fill the area with a Pattern?
A). Select the Paint Bucket, and Right click the layer in the palette and select “Pattern”.
B). Hold down the “P” key while using the Paint Bucket.
C). Left click the Foreground drop down box in the options bar and then Left click “Use Patterns”.
D). Left click the Foreground drop down box in the options bar and then Left click “Pattern”.
4). How do you easily flip the color around so that the gradient begins with the background color first?
A). Left click the Gradient Picker editor and then select the color.
B). Within the Gradient Picker editor, use the “X” key to flip the colors.
C). In the options bar, Left click “Reverse”.
D). In the options bar, Left click “Flip Colors”.
5). The bottom stoppers do what in the Gradient editor dialog box?
A). They allow you to change the opacity.
B). They allow you to reverse the colors.
C). They allow you to define the percentage of colors used in the Gradient.
D). They allow you to define the colors.
6). There are 2 “Gradient Types” which are?
A). Solid and Noise.
B). Solid and Sectional.
C). Blurred and Solid.
D). Colored and Noise.
7). How do you delete an added stopper in the Gradient editor dialog box?
A). Drag the stopper to the layers palette.
B). Select the Preset and Left click the “Delete” button.
C). Left click the stopper and Left click the “Delete” button.
D). Drag the stopper to the far right hand side of the screen to delete the stopper.
8). How do you display the presets as small thumbnails in the Gradient editor dialog box?
A). Left click on the right arrow next to the presets and Left click the “Small Thumbnail” command.
B). Left click on the down arrow next to the presets and Left click the “Small Thumbnail” command.
C). Within the editor, Left click the image (icon) that looks like a thumb.
D). Left click on the down arrow next to the presets and Left click the “Small” command.
9). Why should you make a selection before you use the Gradient Tool?
A). With a selection the Gradient Tool will span across the whole canvas.
B). With a selection the Gradient Tool will only span across the selected area only.
C). A selection tells Photoshop to blend the background color with the current layer.
D). A selection tells Photoshop to blend the foreground color with the current layer.
10). The “Tolerance” in the Paint Bucket options bar does what?
A). The Tolerance allows you change the shade of the solid color.
B). The Tolerance will tell the Adobe Photoshop program how strong of a color to fill.
C). The Tolerance is used in conjunction with Layer masking.
D). The Tolerance refers to how carefully the tool must match the color of an area before it fills.
Answers: 1). A, 2). C, 3). D, 4). C, 5). D, 6). A, 7). C, 8). A, 9). B, 10). D Source: go
No comments:
Post a Comment
